Product Details:
|
| Name: | Freight Lift Elevator | Door Safety: | Infrared Light Beams |
|---|---|---|---|
| Shaft: | Concrete Or Steel Structure | Control System: | VVVF Control System |
| Power Supply: | AC 380V 3PH 50HZ | HS Code: | 8428101090 |
| Min. Load: | 1600kg | Max. Speed: | 1.0m/s |
| Door Opening: | Center Or Side Opening | Drive: | Gearless Drive |
| Highlight: | commercial car elevator,heavy duty elevator |
||

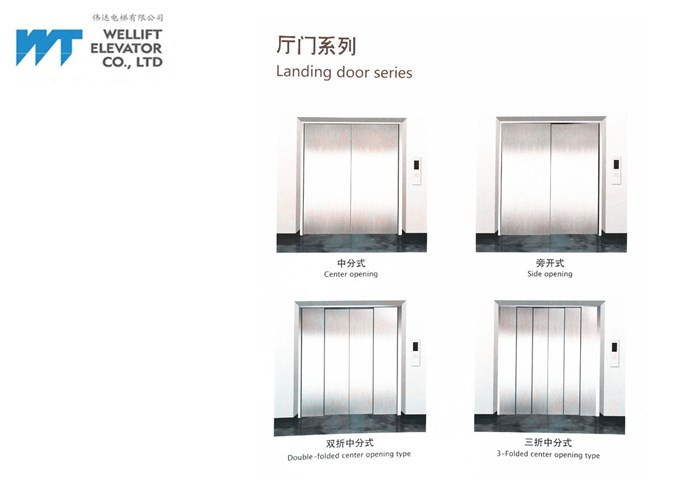

Goods Lift with Multiple Opening Modes is available for design choice
In order to satisfy different entry /exit requirements for the users to transport the goods, WELLIFT freight elevator has side opening door, center opening double-folded door, center opening 3-folded door and single way door, opposite door for your choice. Our freight elevator applies variable frequency door machine control system, AC variable frequency motor, and variable frequency door machine mechanical system with the advanced technology. It not only increases the elevators' safety and sensitivity in the running, but also saves energy and consumption loss. It suits modern transport requirements which are progressively increasingly day by day.
Standard Specification of Goods Elevator / Freight Elevator
|
Load(Kg) |
1000, 1600, 2000, 3000, 4000, 5000 |
|
Speed(m/s) |
0.25, 0.5,1.0 |
|
Most Stops |
15 |
|
Max. Journey |
60m |
Cargo Elevator / Goods Elevator / Freight Elevator Main Configurations:
|
Control system: |
Modularized micro-computer full collective selective control, long-distance monitor available |
|
Driving system: |
AC-WVF(Variable voltage-variable frequency)drive system |
|
Door system: |
2-panel auto telescopic side opening door or auto center opening door with WVF drive |
|
Safety device: |
Door safety protection of infrared light beams |
|
Car plate: |
2mm thick plastic spray steel plate with reinforcing steel bars |
|
Car floor: |
Hardwood floor and 6mm thick anti-slip steel plate with pattern |
Function for Cargo Elevator / Goods Elevator / Freight Elevator
|
S Standard Function O Optional Function |
|
|
Information Functions |
|
|
Landing alarm |
S |
|
Digital indicator of floors |
S |
|
Voice landing announce |
O |
|
Functions for Disabled (Braille Button, Voice Announcer) |
O |
|
Traveling Function |
|
|
Up-down full selective collective |
S |
|
Direct landing |
S |
|
Repeating open |
S |
|
Overload display buzzer |
S |
|
Car automatic homing to GF |
S |
|
Reverse instruction cancel at terminal landing |
S |
|
Quiet blower cross flow fan in car |
S |
|
2 sets parallel operation |
O |
|
Emergency Communication Function |
|
|
Interphone |
S |
|
Conference mode |
S |
|
Special Service Functions |
|
|
Auto/attendant service |
S |
|
Independent service |
S |
|
Auto lock at home landing |
S |
|
Freewill service landing setting |
S |
|
Tele-monitor interface reservation |
S |
|
Emergency Function |
|
|
Emergency car lighting |
S |
|
Fire protection operation |
S |
|
ARD--- Automatic Rescue Device |
O |
|
Safety Functions |
|
|
Door infrared light-beams safety protection |
S |
|
Over-load display buzzer |
S |
|
Safety circuit protection |
S |
|
Over speed protection system |
S |
|
Off-side protection at terminal landing |
S |
|
Transducer breakdown protection |
S |
|
Main-control CPU protection |
S |
|
IC card access control |
O |
|
Maintenance Functions |
|
|
Inspection operation |
S |
|
Trouble self-diagnose record |
S |
|
Long-distance maintenance monitor |
O |
Our T5 freight elevator is of high configurations and complete functions, and is built with dependable quality to last a lifetime. We invite you to compare this goods elevator to any competitor, and you will find it superior in design and quality.
Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
